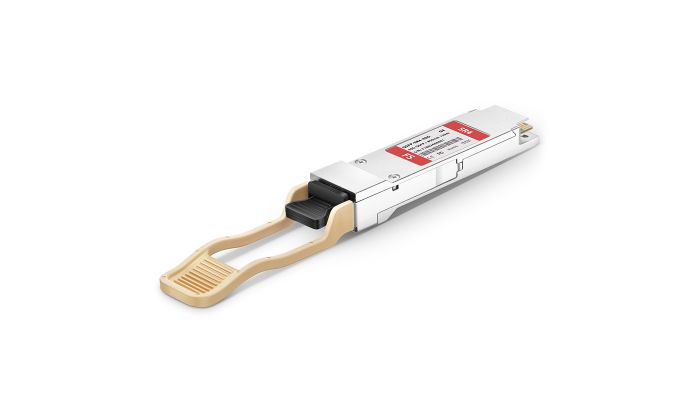

The QSFP+ module adopts 12 Fibers MTP/MPO Male connectors, reaching a link up to 150m over OM4 MMF (100m over OM3). This transceiver is compliant with QSFP+ MSA, IEEE 802.3ba 40GBASE-SR4 and breakout to 4x10GBASE-SR standard. At the same time, it is completely interoperable with all standard 40GBASE-SR4 interfaces. Digital diagnostics functions are also available via the I2C interface, as specified by the QSFP+ MSA, to allow access to real-time operating parameters. With its easy installation and hot-swappable design, this transceiver is ideal for various applications, including campus, data center, cloud deployments, high-performance computing environments, and interconnections between switches, routers, servers, and transport equipment.
Specifications
Part Number: QSFP-SR4-40G
Vendor Name: FS
Form Factor: QSFP+
Max Data Rate: 41.25Gbps (4x 10.3125Gbps)
Wavelength: 850nm
Max Cable Distance: 150m@OM4/100m@OM3
Connector: MTP/MPO-12 Male
Cable Type: MMF
Transmitter Type: VCSEL
Receiver Type: PIN
TX Power: -7.1~1.9dBm
Receiver Sensitivity: <-10.3dBm
Digital Optical Monitoring: Yes
Receiver Overload: 2.4dBm
Power Consumption: <1.5W
Core Size: 50um
Extinction Ratio: >3dB
Modulation: NRZ
Host FEC: Supported
Modal Bandwidth:
2000 (OM3) MHz*km
4700 (OM4) MHz*km
4700 (OM4) MHz*km
Commercial Temperature Range: 0 to 70°C (32 to 158°F)
Protocols
IEEE 802.3ba, QSFP+ MSA, SFF-8436, SFF-8636
