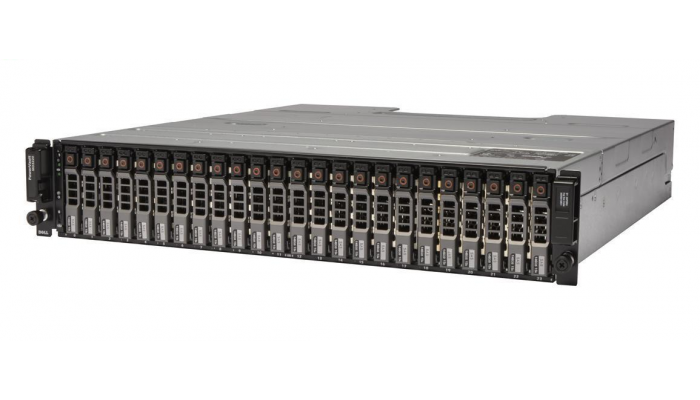

Dell PowerVault md3220i iSCSI Disk Array -2x Controllers 24x 2.5" SFF

Dell PowerVault md3220i iSCSI Disk Array
Dual ISCSI Controller
Two Power Supplies

Please not only one ISCSI controller is installed.


Supports up to 64 servers when configured with 1Gigabyte iSCSI

Dual controllers operate in an active-active environment mirroring each other’s cache
Cache protection is provided via flash memory for permanent data protection
Dynamic Disk Pools (DDP) eliminates the need for complex RAID management while optimizing data protection, and can be used along side of existing RAID configurations
Management
2nd generation multi-protocol Modular Disk Storage Manager, Java based user interface
Multi-path graphical software provides failover management of redundant data paths between the server and storage array

MD3200i and MD3220i Standard Features:
Dynamic Disk Pools- Optional configuration to RAID disk management
VAAI support- Available for customers using VMware vStorage APIs for Array Integration,
vCenter Plugin- Available for customers using VMware vSphere
VASA- vStorage API for Storage Awareness, available for use in conjunction with the vCenter Plugin
SRA-Sight Recover Manager, available for use with vCenter Plugin
ALUA-Active Active LUN Access
Supports Self Encrypting Drives (SED) that provide an additional level of data protection
Thin Provisioning- Allocate and consume physical storage capacity as needed

Back-Panel Connectors
Back-Panel Connectors
Four RJ-45 1Gb Ethernet for host connectivity,
One 6Gb SAS for drive expansion,
One RJ-45 1Gb Ethernet for remote management;
One PS/2 Serial service
Power
Wattage: 600 W peak output
Heat Dissipation (max): 150 W
Input Voltage Range: 90 to 264 VAC
Frequency range: 47 to 63 Hz
Maximum Input Current at Rated Power: 55 A for 10ms or less, 25 A for 10-150ms
Available hard drive power: 2.5" drive: 12 Watts
Consolidate with flexible, high-capacity storage
Simplify the challenges of large-data storage, management and access with a Dell™ PowerVault™ MD3 iSCSI array series.
