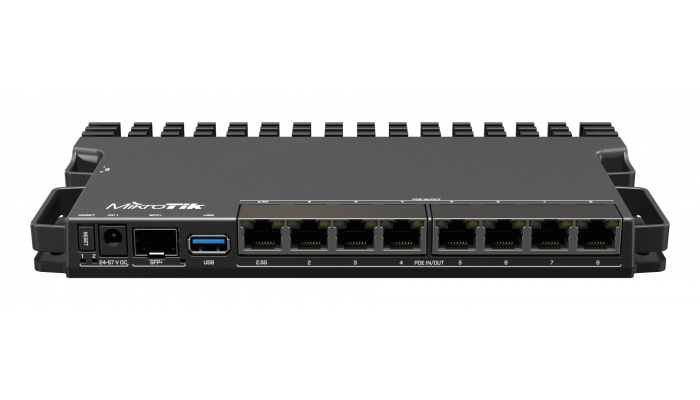

MikroTik RB5009UPr+S+IN 8x 1Gb PoE and 1x 10GB SFP+
RB5009UPr+S+INA new version of our popular heavy-duty RB5009 router with PoE-in and PoE-out on all ports.
2.5 Gigabit Ethernet & 10 Gigabit SFP+, numerous powering options.
Specifications
| Details |
| Product code |
RB5009UPr+S+IN |
| Architecture |
ARM 64bit |
| CPU |
88F7040 |
| CPU core count |
4 |
| CPU nominal frequency |
350-1400 (auto) MHz |
| Switch chip model |
88E6393 |
| RouterOS license |
5 |
| Operating System |
RouterOS (v7 only) |
| Size of RAM |
1 GB |
| Storage size |
1 GB |
| Storage type |
NAND |
| MTBF |
Approximately 200'000 hours at 25C |
| Tested ambient temperature |
-40°C to 60°C |
| IPsec hardware acceleration |
Yes |
| |
|
Powering
| Details |
| Number of DC inputs |
3 (2-pin terminal, DC jack, PoE-IN) |
| DC jack input Voltage |
24-57 V |
| 2-pin terminal input Voltage |
24-57 V |
| Max power consumption |
150 W |
| Max power consumption without attachments |
15 W |
| Cooling type |
Passive |
| PoE in |
802.3af/at (ether1), Mode B (ether2-ether8) |
| PoE in input Voltage |
24-57 V |
PoE-out
| Details |
| PoE-out ports |
Ether1-Ether8 |
| PoE out |
802.3af/at |
| Max out per port output (input 18-30 V) |
640 mA |
| Max out per port output (input 30-57 V) |
420 mA |
| Max total out (A) |
2.59 A |
| Total output current |
2.28 |
| Total output power |
130 |
Ethernet
| Details |
| 10/100/1000 Ethernet ports |
7 |
| Number of 1G Ethernet ports with Reverse PoE (PoE-in) |
7 |
| Number of 2.5G Ethernet ports |
1 |
| Number of 2.5G Ethernet ports with Reverse PoE (PoE-in) |
1 |
Fiber
Peripherals
| Details |
| Number of USB ports |
1 |
| USB Power Reset |
Yes |
| USB slot type |
USB 3.0 type A |
| Max USB current (A) |
1 |
Other
| Details |
| CPU temperature monitor |
Yes |
| Current Monitor |
Yes |
| PCB temperature monitor |
Yes |
| Voltage Monitor |
Yes |
Certification & Approvals
| Details |
| Certification |
CE, EAC, ROHS |
| IP |
20 |
